Deploy SeaSearch in cluster (x86 CPU only)

Cluster architecture

A SeaSearch cluster deployment consists of SeaSearch nodes (recommended more than three nodes for high availability), and gateway node(s). These nodes coordinate internal state and index allocation through etcd:

  • The SeaSearch node is responsible for reading and writing the index. The index is temporarily stored on the local disk as a cache. If the required data is not in the cache, it is read from S3. When a SeaSearch node goes offline, its indexes are reassigned to the remaining nodes, which then retrieve the latest data from S3.
  • The gateway node mainly consists of two processes: the SeaSearch cluster-manager service and the SeaSearch proxy service. The former monitors the health of the Seasearch nodes and assigns the most suitable node to new requests. The latter queries etcd for the metadata information of the most suitable node assigned by the cluster-manager and uses this metadata information to forward user requests to that node.

Prerequisite

Prepare S3 storage for storing indexes

You need to create a bucket on S3 storage provider for storing indexes

Prepare etcd cluster

You need to prepare etcd cluster (recommended more than three nodes for high availability) to store SeaSearch cluster metadata information. In most cases, you can install and configure etcd for each node as follows:

  • Installation:
    apt update
apt install -y etcd-server etcd-client
service etcd start


mkdir /opt/etcd-data/
chmod 777 /opt/etcd-data/

  • Configuraion (vim /etc/default/etcd):

    # etcd-1 ip: 172.16.1.1
# etcd-2 ip: 172.16.1.2
# etcd-3 ip: 172.16.1.3

ETCD_NAME="etcd-1"
ETCD_DATA_DIR="/opt/etcd-data/"
ETCD_LISTEN_PEER_URLS="http://172.16.1.1:2380"
ETCD_LISTEN_CLIENT_URLS="http://localhost:2379,http://172.16.1.1:2379"
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://172.16.1.1:2380"
ETCD_INITIAL_CLUSTER="etcd-1=http://172.16.1.1:2380,etcd-2=http://172.16.1.2:2380,etcd-3=http://172.16.1.3:2380"
ETCD_INITIAL_CLUSTER_TOKEN="xxx" # your etcd token
ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379,http://172.16.1.1:2379"
ETCD_PROXY="off"
ETCD_AUTO_COMPACTION_RETENTION="1"

    Then restart etcd with

    service etcd restart

    Timeout failure while restart etcd

    This is usually because etcd is not yet installed on all etcd nodes (often happens while configuring a particular etcd node and etcd has not yet installed in some required nodes). You just need to wait until the configuration files (i.e., /etc/default/etcd) on all etcd nodes , and then restart the service togather.

The following assumptions and conventions are used in the rest of this document (applicable to all nodes, including the gateway nodes):

  • /opt/seasearch is the directory for storing SeaSearch server docker compose files. If you decide to put SeaSearch in a different directory, adjust all paths accordingly.

  • /opt/seasearch-cluster-gateway is the directory for storing SeaSearch gateway docker compose files. If you decide to put the gateway server in a different directory, adjust all paths accordingly.

Download the yml and env file

You can download the .yml and .env files by following commands:

mkdir /opt/seasearch
cd /opt/seasearch
wget https://seasearch-manual.seafile.com/1.0/repo/cluster/seasearch/seasearch.yml
wget -O .env https://seasearch-manual.seafile.com/1.0/repo/cluster/seasearch/env

Modify .env file

INIT_SS_ADMIN_USER=<admin-username>
INIT_SS_ADMIN_PASSWORD=<admin-password>
SS_CLUSTER_ID= # e.g., 1, 2, 3...., each node must be distinct and cannot be modified after initialization.
SS_ETCD_ENDPOINTS= # separated by commas, e.g., '192.168.0.1:2380,192.168.0.2:2380,192.168.0.3:2380'
SS_ETCD_USERNAME=
SS_ETCD_PASSWORD=
SS_ETCD_PREFIX=/seasearch

Start SeaSearch server

docker compose up -d

Deploy gateway

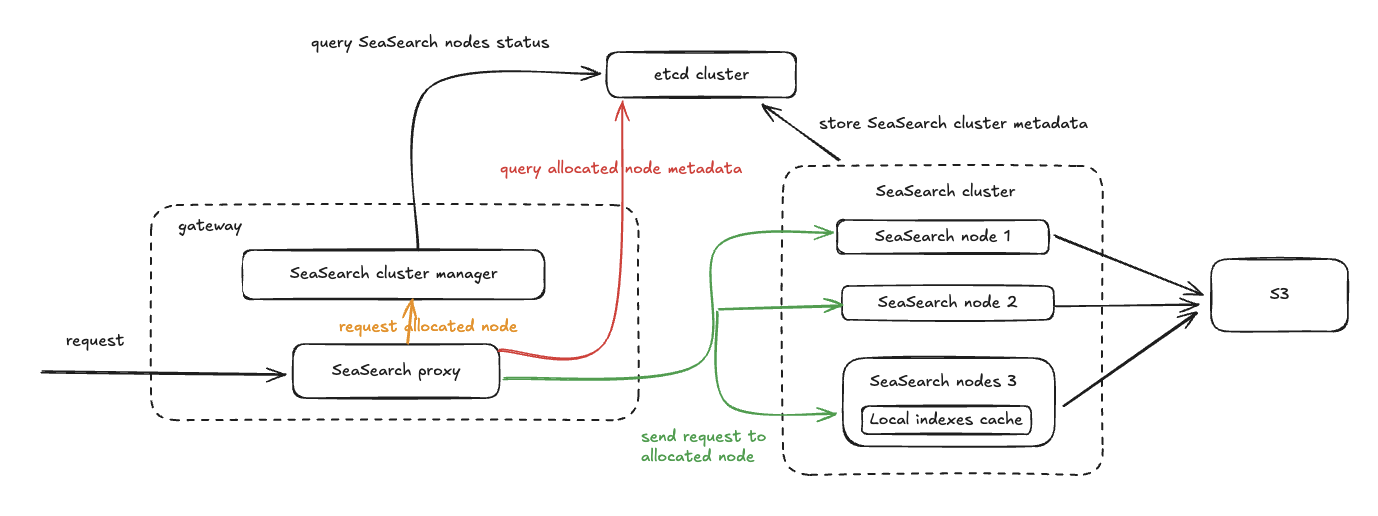

  • Deployment method 1: single gateway (for most situations)

    In most cases, deploying just one gateway node is sufficient to handle user needs within a SeaSearch cluster. At this time, both the SeaSearch cluster-manager and SeaSearch proxy services on the gateway node are enabled:

    grafik

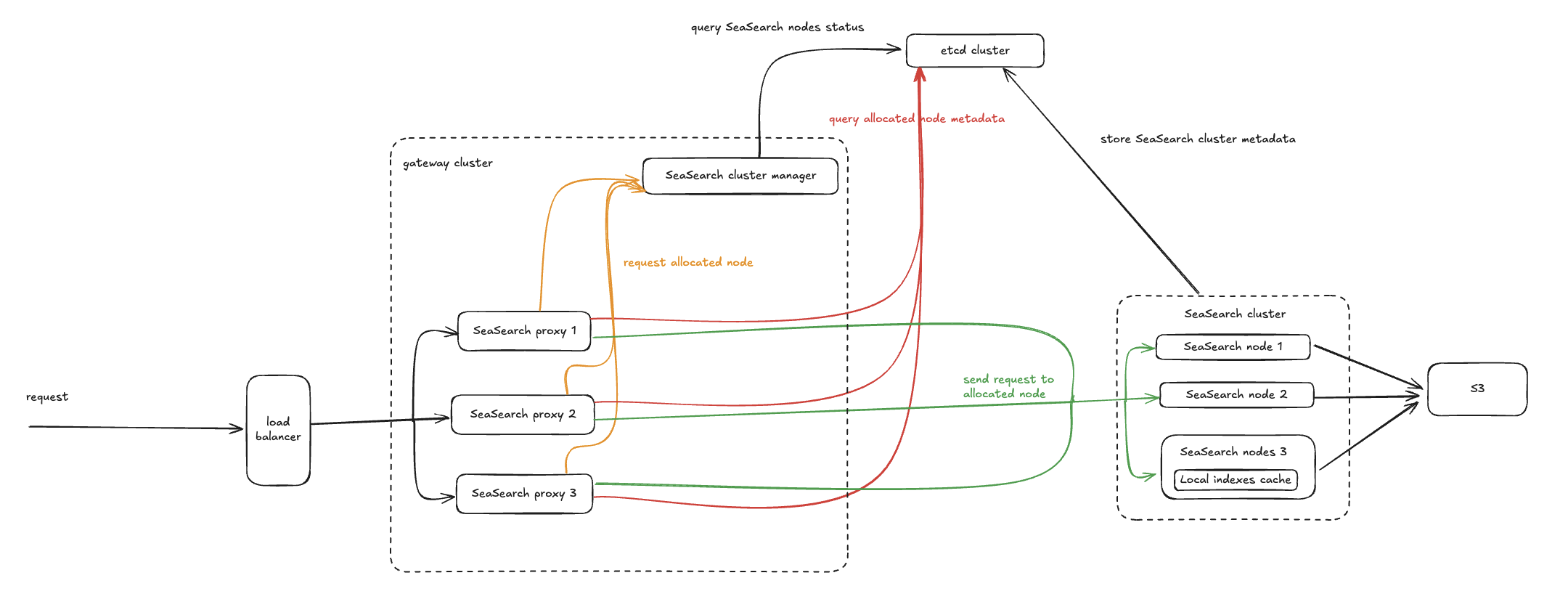

  • Deployment method 2: SeaSearch gateway cluster

    In addition to the main SeaSearch service, the SeaSearch gateway also supports clustering (i.e., SeaSearch gateway cluster) to achieve load balancing for higher demand. The SeaSearch gateway cluster mainly consists of several SeaSearch proxy nodes (more than 3 are recommended for high availability) and one SeaSearch cluster manager node:

    grafik

Regardless of the deployment method, you need to perform the following steps:

Download the yml and env file

You can download the .yml and .env files by following commands:

mkdir /opt/seasearch-cluster-gateway
cd /opt/seasearch-cluster-gateway
wget https://seasearch-manual.seafile.com/1.0/repo/cluster/gateway/cluster-gateway.yml
wget -O .env https://seasearch-manual.seafile.com/1.0/repo/gateway/env

Modify .env file

# SeaSearch server cluster nodes
# format: <CLUSTER_ID>:<SeaSearch server endpoint>, separated by commas
# e.g., '1:192.168.1.1:4080,2:192.168.1.2:4080,3:192.168.1.3:4080'
SS_SERVER_CLUSTER_ENPOINTS=

SS_ETCD_ENDPOINTS= # separated by commas, e.g., '192.168.0.1:2380,192.168.0.2:2380,192.168.0.3:2380'
SS_ETCD_USERNAME=
SS_ETCD_PASSWORD=
SS_ETCD_PREFIX=/seasearch

# SeaSearch server cluster nodes
# format: <CLUSTER_ID>:<SeaSearch server endpoint>, separated by commas
# e.g., '1:192.168.1.1:4080,2:192.168.1.2:4080,3:192.168.1.3:4080'
SS_SERVER_CLUSTER_ENPOINTS=

SS_GATEWAY_NODE_TYPE=manager # only start the cluster manager service

SS_ETCD_ENDPOINTS= # separated by commas, e.g., '192.168.0.1:2380,192.168.0.2:2380,192.168.0.3:2380'
SS_ETCD_USERNAME=
SS_ETCD_PASSWORD=
SS_ETCD_PREFIX=/seasearch

SS_GATEWAY_NODE_TYPE=proxy # only start the proxy service
SS_CLUSTER_MANAGER_URL=http://<your_cluster_manager_node>:4081

SS_ETCD_ENDPOINTS= # separated by commas, e.g., '192.168.0.1:2380,192.168.0.2:2380,192.168.0.3:2380'
SS_ETCD_USERNAME=
SS_ETCD_PASSWORD=
SS_ETCD_PREFIX=/seasearch

SS_GATEWAY_NODE_TYPE for Gateway cluster

When you set SS_GATEWAY_NODE_TYPE=manager, only the cluster-manager service will be started on the current gateway node (correspondingly, setting it to proxy will only start the proxy service). However, SeaSearch gateway cluster also supports users starting both the cluster manager and proxy services on a single gateway node to save resource overhead. In this case, you only need to set SS_GATEWAY_NODE_TYPE to empty.

Start gateway node

docker compose up -d

Now, you can access SeaSearch API (console is unavailable) at http://<your cluster-gateway IP>:4082/ (i.e., the URL of SeaSearch proxy, and refer to here for the situation with gateway cluster) and login by the INIT_SS_ADMIN_USER and INIT_SS_ADMIN_PASSWORD defined in the .env file.

External load balancer for SeaSearch gateway cluster

Since the access endpoint for the SeaSearch cluster is the address of the proxy service in the gateway, you also need to configure load balancing for multiple proxy services to enable external connections for the SeaSearch gateway cluster. Here, we will use Nginx as an example to briefly describe how to configure Nginx to access the SeaSearch gateway cluster in this scenario:

upstream seasearch_proxy_backend {
    keepalive 32;

    server <seasearch-gateway-proxy-node1-ip>:4082 weight=3 max_fails=3 fail_timeout=30s;
    server <seasearch-gateway-proxy-node2-ip>:4082 weight=2 max_fails=3 fail_timeout=30s;
    server <seasearch-gateway-proxy-node3-ip>:4082 weight=1 max_fails=3 fail_timeout=30s;

    # Also you can configure a backup node
    # server <seasearch-gateway-proxy-node-backup-ip>:4082 backup;
}

server {
    listen 80;
    server_name seasearch.example.com; # your load balancer domain / IP

    access_log /var/log/nginx/seasearch.access.log main;
    error_log /var/log/nginx/seasearch.error.log warn;

    location / {
        proxy_pass http://seasearch_backend;

        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Forwarded-Host $server_name;

        # ... other Nginx configurations
    }
}
